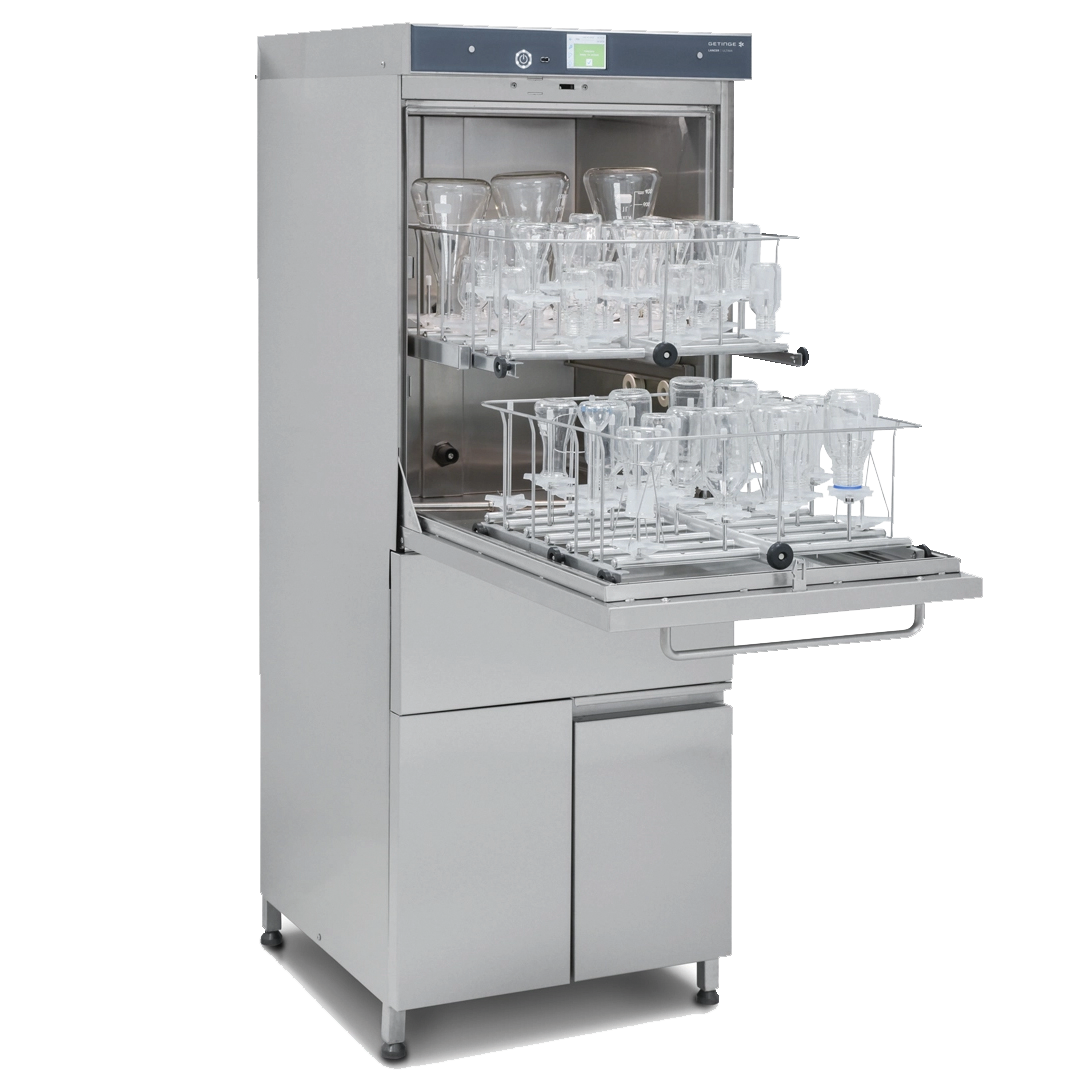

Lancer Glassware Washer 1300LX

Technical data components:
Model	1300LX
Controller	PROLUX – 40 Programs
Drying	Dual system – chamber and injector drying
Washing levels	3
Water circulation system operating temperature	Max 95°C
Circulation pump max flow (L / min)	420
Electrical Data:
Sound level	≤ 60 dB(A)
Human interface	Color touch screen 3.5”
Voltage & Frequency	380-400 VAC 3N+PE, 50Hz
Power usage (kW)	10
Outer Dimensions:
Width net [mm]	609
Depth net [mm]	752
Height net [mm]	1643
Internal Dimensions:
Width net [mm]	535
Depth net [mm]	520
Height net [mm]	644
Measures:
Volume (ltrs)	180
Water per fill (ltrs)	15
Weight (kg)	145

Washing levels: 1, 2 or 3 with upper level featuring 2 possible positions for height adjustment
Interchangeable racks between the three levels of washing
Dual spray arms- Top and bottom of the Chamber
Water Consumption (approximate per operation according to the basket used): 15L per fill
Powerful Hydraulic circuit having Re-circulating Pumps (flow rate): 111 gal/min (420 L/min)
Unique, proven design enables water circulation at full pressure on all levels, delivering the required mechanical effect for highly efficient washing in all areas of the load
Dosing: Automatic detergent and acid dosing via peristaltic pump
Drying: HEPA filtered injector drying + Hot air forced drying i.e dual drying
Chamber Volume: 180 L
Integrated automatic door locking system
User friendly 3.5″ color touchscreen display
Powerful hydraulic circuit with Direct Water Injection on each washing level
USB 3.0 Port inbuilt for data recording
Optional View-in-Process Window to have a view inside the chamber
Optional Water Softener for Purified water input
