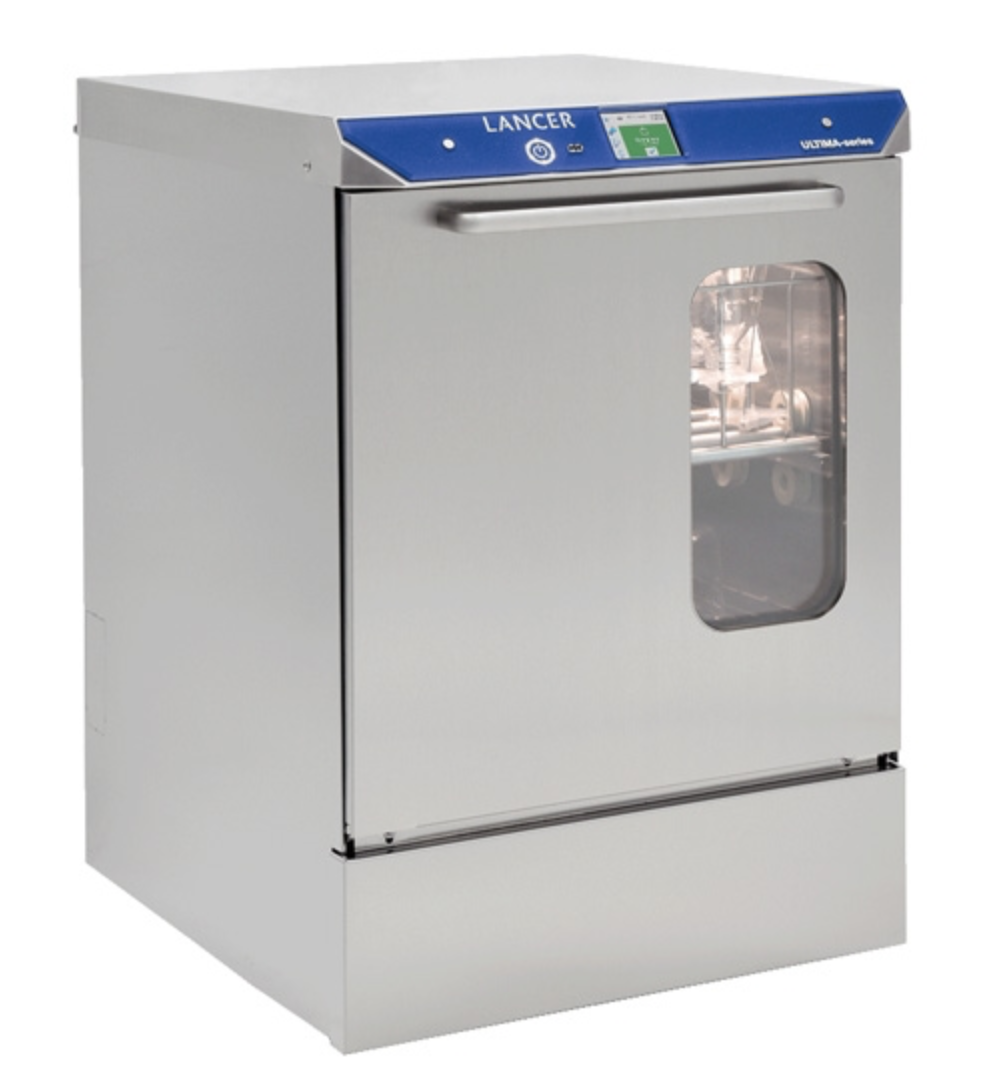

Lancer Glassware Washers

Technical Data Components:
Model	815LX
Controller	PROLUX – 40 Programs
Drying	Standard: Forced air chamber drying<br>Optional: HEPA filtered forced injector drying
Washing levels	2
Water circulation system operating temperature	Max 95°C
Circulation pump max flow (L / min)	350
Electrical Data:
Sound level	≤ 60 dB(A)
Human interface	Color touch screen 3.5”
Voltage & Frequency	220-240 VAC,1+PE, 50Hz
Power usage (kW)	7
Outer Dimensions:
Width net [mm]	609
Depth net [mm]	739
Height net [mm]	850
Measures:
Volume (ltrs)	140
Water per fill (ltrs)	12
Weight (kg)	85

Washing levels: 1 or 2 levels
Interchangeable racks between the two levels of washing
Dual spray arms- Top and bottom of the Chamber
Water Consumption (approximate per operation According to the basket used) : 12L per fill.
Powerful Hydraulic circuit having Re-circulating Pumps (flow rate): 92 gal/min (350 L/min)
Unique, proven design enables water circulation at full pressure on all levels, delivering the required mechanical effect for highly efficient washing in all areas of the load.
Dosing: Automatic detergent and acid dosing via peristaltic pump
Drying: Hot air forced drying
Optional HEPA filtered hot air through chamber and injectors
Chamber Volume: 140 L
Integrated automatic door locking system
User friendly 3.5″ color touchscreen displays
Powerful hydraulic circuit with Direct Water Injection on each washing level
USB 3.0 port inbuilt for data recording
Optional Printer Connection
Optional View-In-Process Window to have a view inside the chamber
Optional HEPA filtered hot air through chamber and injectors
Optional Water Softener for purified water input
